Activating the LinSig Licence Server software

Unlimited Networked PC Licences

With the Unlimited Networked PC Licences it is not necessary to activate each PC individually, instead workstations obtain a licence from a central licence server, which authorises them to run LinSig. This requires a separate piece of software called the JCT Consultancy Licence Server to be installed on a central computer that can be accessed across the network by all computers that have LinSig installed.

The following instructions show you how to activate the Licence Server software on the central computer.

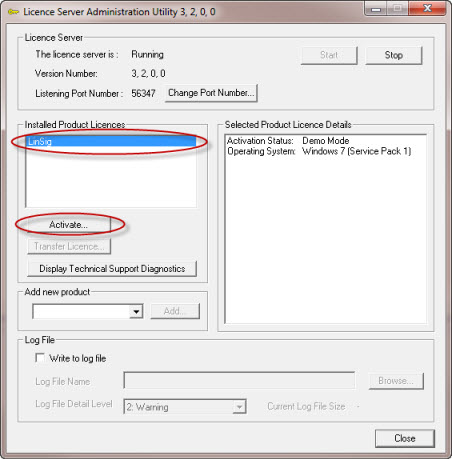

  1. Start the LinSig Licence Server Administration Utility. You can find it from the Programs section of the Windows Start menu under "JCT Consultancy LinSig Licence Server".

  2. Select "LinSig" in the Installed Product Licences box and click the "Activate..." button to continue.

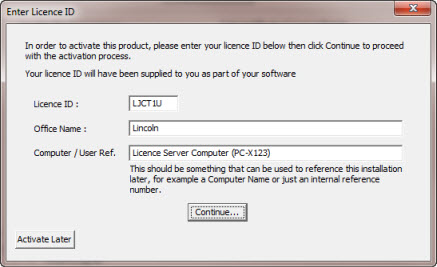

  3. The following window will be displayed.

    Enter your Licence ID, Office Location and a Computer / User Reference.

    Your Licence ID will have been provided to you by JCT Consultancy and will be of the format LxxxxU.

    Then click the "Continue..." button to proceed.

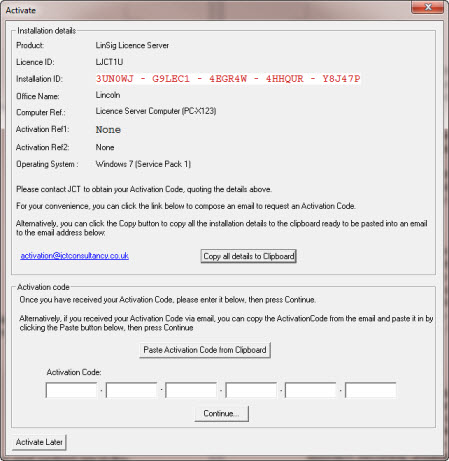

  4. The following window will be displayed containing your installation details which are unique to your computer.

    Email these details to "". You can click the blue link to automatically compose an email ready to send, or alternatively you can click the "Copy all details to clipboard" button and paste them into an email by hand.

    JCT Consultancy will respond to your email with an Activation Code. The Activation Code is unique to your computer.

  5. Enter the Activation Code into the boxes at the bottom. You can copy the Activation Code out of your received email and then click the "Paste Activation Code from Clipboard" button to paste the code in.

    Once you have entered your Activation Code, click "Continue..."

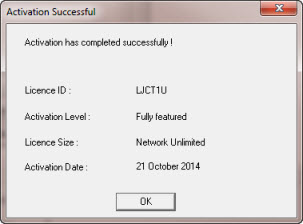

  6. Upon successful activation, the following window will be displayed.
